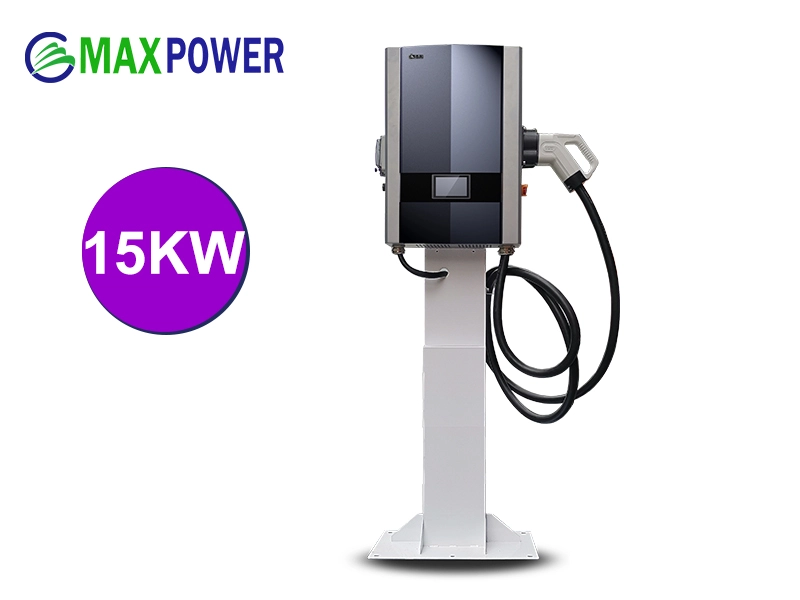

Specification of 15KW


Model

SC15750

INPUT

Voltage range

260-475Vac, 380V(Rated)

Working frequency

45-65HZ

The power factor

≥0.99

Input current

30A

Auxiliary source

GB/T:12V 24V OPT CCS CHAdeMO:12V

OUTPUT

Power

15KW

Voltage range

200-750Vdc

Output current

0-37.5A

Charging plug cable length

5M

The work environment

Temperature range

-20~50℃; 25℃ (type)

Humidity range

5~90RH%; (non-condensation)

The altitude

2000M

Storage environment

Temperature range

- 40 ~ 85℃; 25℃ (type)

Humidity range

5~95RH%; 25RH%(type); (non-condensation)

The altitude

2000M

Dimensions and protection

Machine size(mm)

642*454* 153mm

Packing size(mm)

Carton: 790*610*380mm Wooden box: 790*610*470mm

Carton packing/weight

Carton weight 41kg, wooden case weight 59kg

The weight mentioned above is reference weight for standard configuration only. If the weight will increase due to the addition of accessories, the actual weight shall prevail

IP

IP54

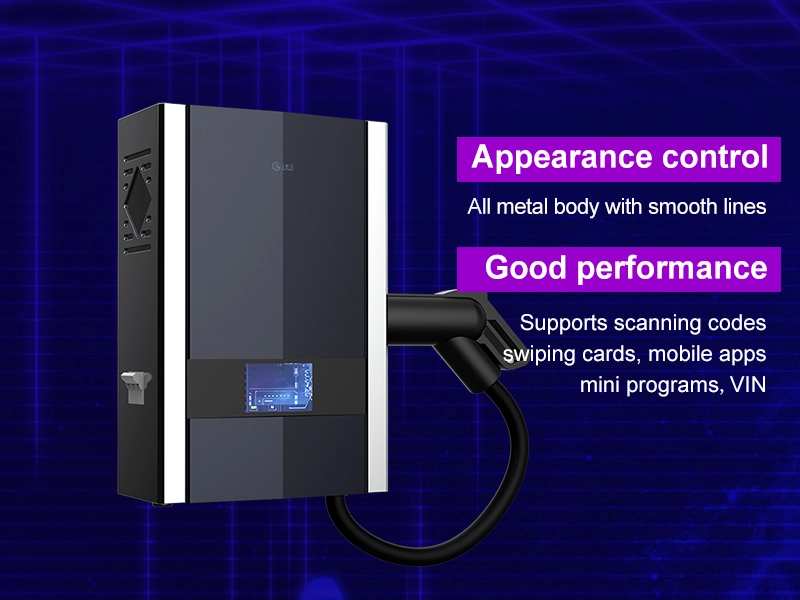

The human-computer interaction

Charging mode

4.3 "color touch screen

Charger standard

Plug and play/OCPP/Credit card/password/reservation/offline billing /APP WIFI+ Bluetooth

GB/T: GB/T 18487, GB/T 20234, GB/T 27930

CCS: EN61851 EN62196, ISO15118, DIN70121

CHAdeMO: CHAdeMO



SC201K Max Power Wallbox charging station is wall-mounted charging point for electric vehicles. It is usually cheapest way to install charger in location. Max Power ev chargers refer to the physical system that provides electrical power to the vehicle plugged in by industry standard cable. This device brings together several components that make the whole system an integral EV charging system.
