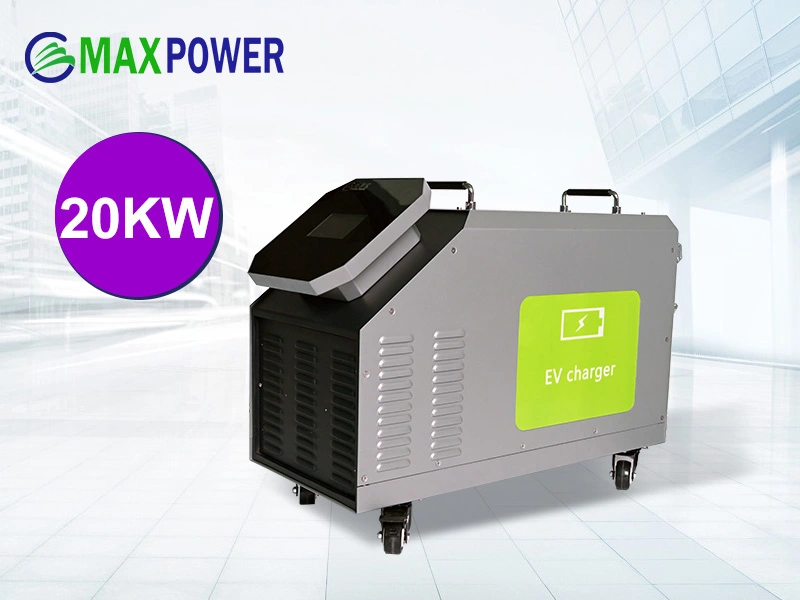

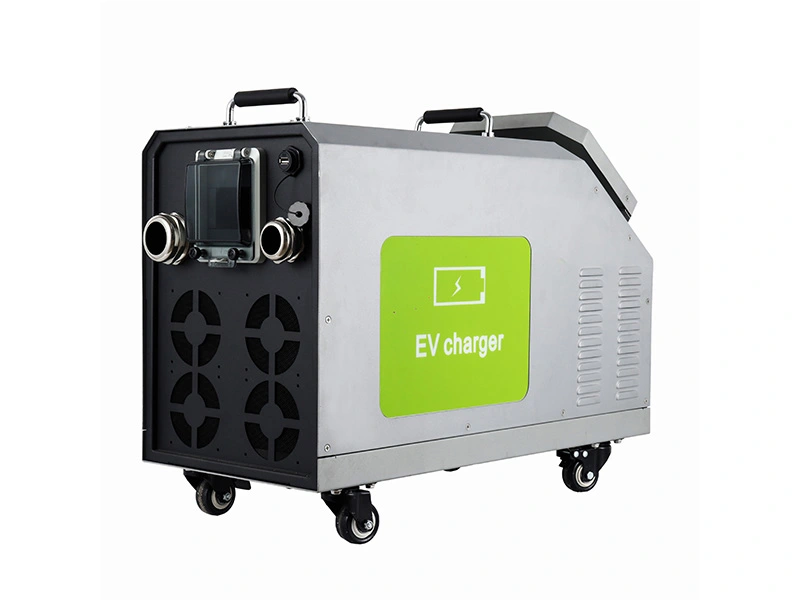

Mobile 20kW DC EV Fast Charger

Model no.: XC20750 / XC201K

Features: High-performance charging module with a wide charging range for charging all DC-compatible EVs; 4.3" colored touch screen display; dual portable handle; robust caster wheels with fixed-position brake; fixed time charging available during off-peak electrical hours.

XC Series 7-40kwGEAJ_Specification (neutral)

General Specifications

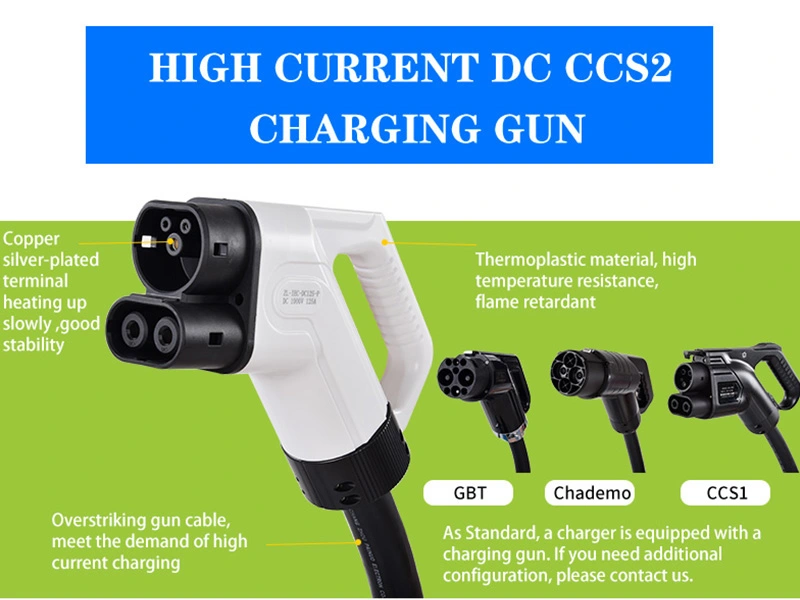

Charging Standard	CCS1 / CCS2 / CHAdeMO / GBT
Start Mode	plug and charge / RFID reader / power-on password
Networking Protocol	OCPP1.6J
Network Cellular	LAN/WIFI/4G modem
Charging Standard	GB/T 20234、GB/T 27930; EN61851、EN62196、ISO15118、DIN70121; CHAdeMO
Temperature Range	-20~+50℃
Machine Dimensions	L86W54H56cm
Input Voltage Range	260-475Vac
Frequency	50/60Hz
Input Current Range	32A
Input Cable Length	5M
Output Power	20kW
Output DC Voltage Range	200-750Vdc / 200-1000Vdc
Output DC Current	33A/60A
Gun Cable Length	3M

Overview

DC mobile chargers typically offer charging power from 10 kW up to 120 kW or more. Higher power units can charge EVs faster. Choose an appropriate power level based on the types of EVs being charged and speed of charging required. Higher power units require more robust electrical infrastructure.

DC mobile EV chargers use either CHAdeMO or SAE CCS plug types to directly connect the EV for charging. They provide convenient plug-and-charge functionality without the need for driver authentication or activation. The charger automatically starts charging when plugged into the vehicle.
