What Is the Structure and Characteristics of the Integrated Charging Pile?

The fast charging pile (plug) equipment adopts the structure of AC and DC integration. It can realize both DC charging and AC charging. When there are many charging businesses in the daytime, DC mode is used for fast charging, and AC charging is used for slow charging when there are few users in the charging station at night.

Shape characteristics

1. Ergonomic design, fully considering the characteristics of Chinese people, the height of the whole machine, the height of the screen, the height of the keyboard and the height of the charging connector placement slot after installation are suitable for operation;

2. The form of upper outlet saves half the physical strength of the operator;

3. In consideration of people's usage habits and durability, the touch and keyboard are controlled by mutual backup, and the touch screen and keyboard are designed to prevent rain and dust;

4. Emergency stop switch with emergency stop; There is a charging connector placement slot, which can be waterproof; 5 meter long flexible cable.

Functional features

1. Provide human-computer interaction; Provide DC and AC charging interfaces;

2. With voice prompt function; With card swiping function;

3. It has the function of printing vouchers;

4. Communicate with BMS in real time to obtain power battery type, unit voltage, residual capacity, temperature, alarm and other information;

5. Generate control commands and switch signals to the charger, control the start and stop of the charger, and obtain the status information of the charger;

6. It has perfect safety protection control logic such as connection state judgment, interlocking and control guidance of charging interface;

7. With CAN2.0B and RS485 communication interfaces, it can communicate with centralized monitoring and transmit charging status information;

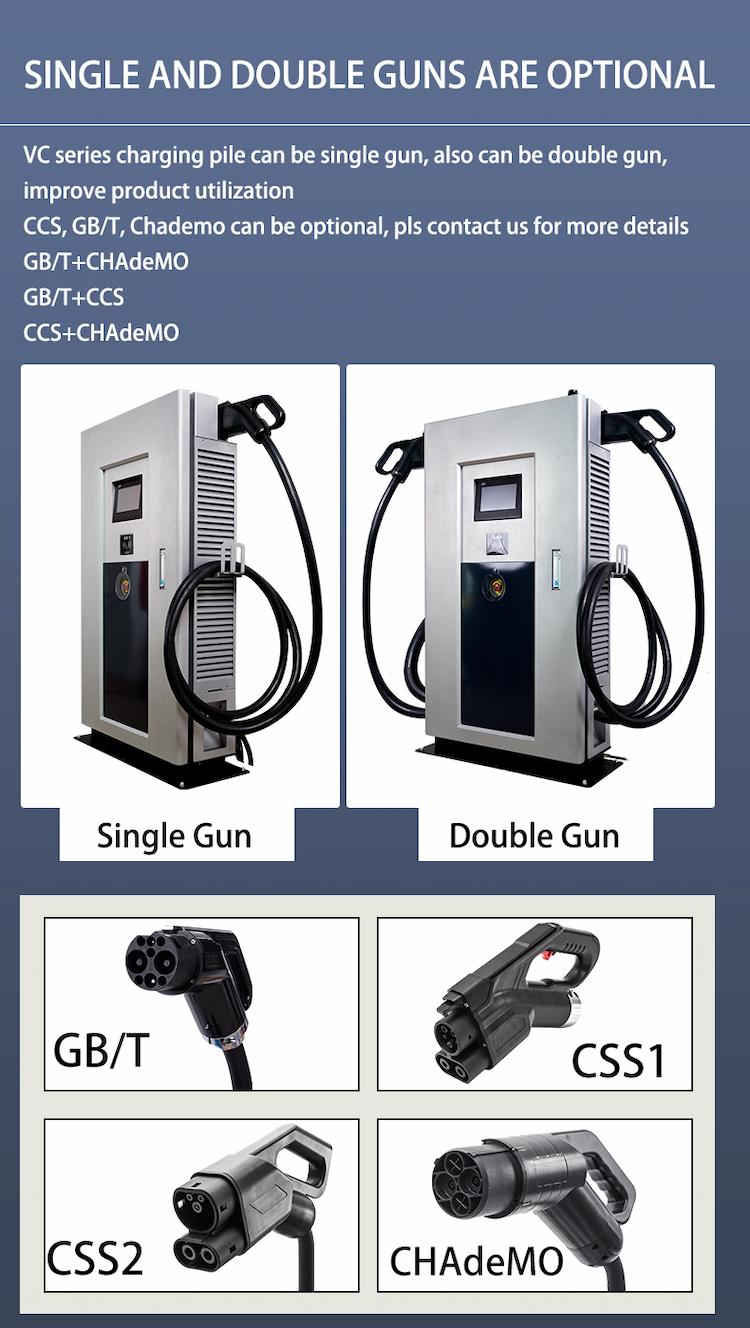

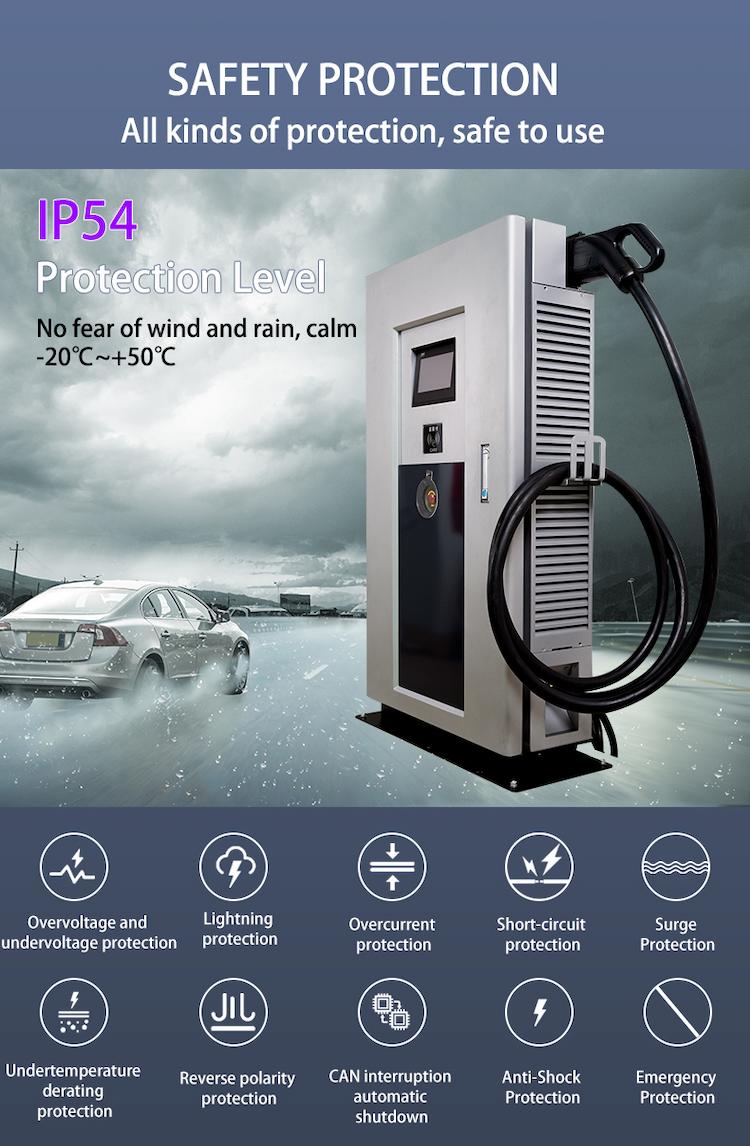

8. It has the protection functions of leakage, short circuit, overvoltage, undervoltage, overcurrent, etc., to ensure the safe and reliable operation of the charging pile (plug); Protection grade IP54.
