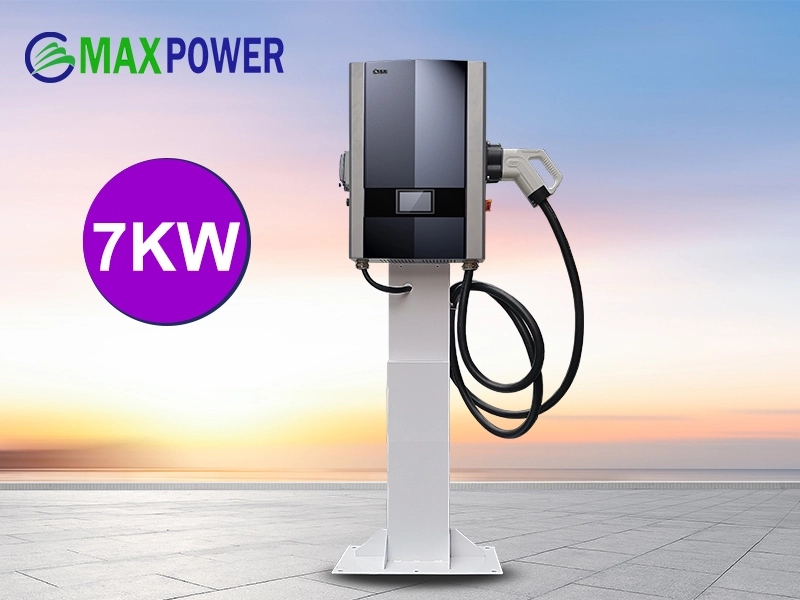

7KW

SC7-40HGAEJ_Product Specification (neutral)

Specification of 7KW

Model	SC07750
INPUT
Voltage range	90-265Vac, 220V(Rated)
Working frequency	45-65HZ
The power factor	≥0.99
Input current	32A
Auxiliary source	GB/T:12V 24V OPT CCS CHAdeMO:12V
OUTPUT
Power	7KW
Voltage range	200-750Vdc
Output current	0-20A
Charging plug cable length	5M
The work environment
Temperature range	-20~50℃; 25℃ (type)
Humidity range	5~90RH%; (non-condensation)
The altitude	2000M
Storage environment
Temperature range	- 40 ~ 85℃; 25℃ (type)
Humidity range	5~95RH%; 25RH%(type); (non-condensation)
The altitude	2000M
Dimensions and protection
Machine size(mm)	548378 160mm
Packing size(mm)	Carton: 790610380mm Wooden box: 790610470mm
Carton packing/weight	Carton weight 32kg, Wooden case weight 41kg
Carton packing/weight	The weight mentioned above is reference weight for standard configuration only. If the weight will increase due to the addition of accessories, the actual weight shall prevail
IP	IP54
OTHER
The human-computer interaction	4.3 "color touch screen
Charging mode	Plug and play/OCPP/Credit card/password/reservation/offline billing /APP WIFI+ Bluetooth

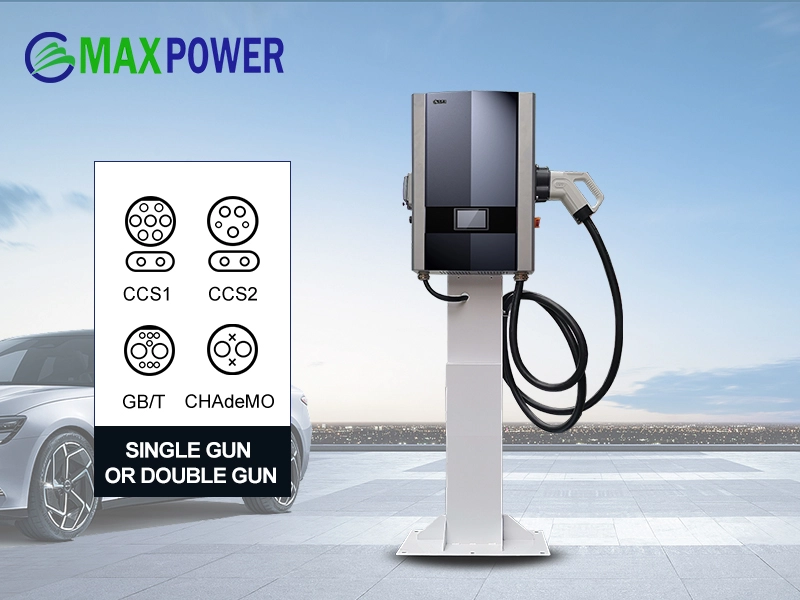

Charger standard	GB/T: GB/T 18487, GB/T 20234, GB/T 27930
	CCS: EN61851, EN62196, ISO15118, DIN70121
	CHAdeMO: CHAdeMO

Dedicated to changing the way the world uses energy, Max Power creates advanced electric vehicle charging and energy management systems with a focus on all aspects of EV

charging from home installations to business solutions.

The new wall mounted SC15750, the 15kw DC Fast EV Chargers can be customized in a variety of co lours, including Black, White, Green, Blue or Grey, as well as options to have a longer 7 metre tethered charging cable than the standard 5 metre. All Max Power EV Chargers are suitable for home and public use and can be controlled through OCPP 1.6 which boasts a range of smart functions.
